WS7040 DC 12V/24V Small High Pressure DC Brushless Centrifugal

High-speed blower fan for remote cooling application. Perfect for high-speed printing applications, especially when used as a remote fan. SPECIFICATIONS Power Source: DC Usage: Commercial Manufacture Pressure: See Chart Below Rated Power: 20~68W Model Number: WS7040-12-V200N/WS7040-24-X200N Rated Voltage: 24V Type: Cen
High-speed blower fan for remote cooling application. Perfect for high-speed printing applications, especially when used as a remote fan. SPECIFICATIONS Power Source: DC Usage: Commercial Manufacture Pressure: See Chart Below Rated Power: 20~68W Model Number: WS7040-12-V200N/WS7040-24-X200N Rated Voltage: 24V Type: Centrifugal Blower Application: Air Blower Motor Type: Three-phase DC Brushless Motor Material: PA66+GF Speed (open): 33000/36000 RPM Speed (sealed): 42000/46000 RPM Air flow (open): 220LMP/280LMP Air pressure (sealed): 5.5/6.5 KPa Noise: 65dBA Hall angle: 60 degrees Bearing type: NMB Ball bearing Certification: CE Protection Class: IP 54 Insulation Class: Class F Note:This blower requires a driver to function properly.   Tips: 1 Adding a filter on the inlet will extend life 2 The correct impeller spin direction is CCW 3 External driver controller can change speed via PWM or 0~5V signal Shipping info - Part will be shipped directly from vendor, will arrive in 4-5wks.

Buy WS7040 DC 12V/24V Small High Pressure DC Brushless Centrifugal Blower,Air Purifier Small Fan For Dehumidifier,Low Noise Fan. at Aliexpress for .

WS7040 DC 12V/24V Small High Pressure DC Brushless Centrifugal Blower,Air Purifier Small Fan For Dehumidifier,Low Noise Fan.

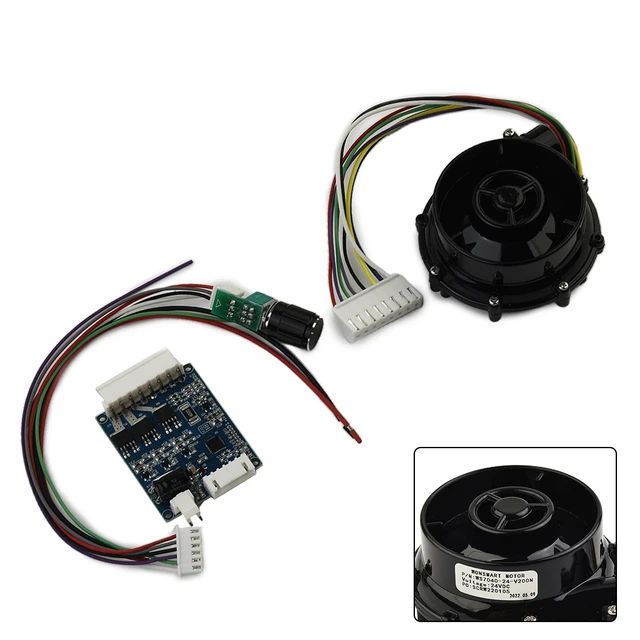

WS7040 Blower Fan (Including driver board) - 3DO
